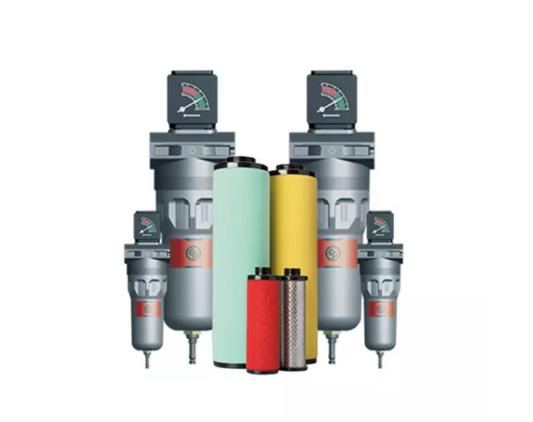

Filter Series 25-1430 cfm

Improve productivity, quality, and efficiency with our Filter series 25-1430 cfm. It offers a unique combination of robustness and efficiency, effectively removing impurities and preventing wear and corrosion in downstream equipment, avoiding costly interruptions to production.

Key features :

1. High performance : Robust structure and efficiency provide high-quality air with reduced dew point and oil concentration.
2. Easy mounting and installation : Serial Connection Kit allows easy mounting in series, while the wall mounting kit simplifies installation.
3. Easy connection : Quick coupling enables easy connection to fix an intelligent drain without compressed air loss.
4. Thorough filtration for peace of mind : Our filters purify compressed air with a unique combination of robustness and efficiency. Six variants offer tailored solutions for different purity requirements.

Six filter types to cover purity requirements :

• G-Filter Range :
  Coalescing filters for general-purpose protection, removing solid particles, liquid water, and oil aerosol. Total Mass Efficiency: 99%. For optimal filtration, use a G filter preceded by a water separator.
• D-Filter Range :
  High-efficiency particulate filters for dust protection. Count Efficiency: 99.97% at Most Penetrating Particle Size (MPPS = 0.06 micron). Always precede a D filter with an S filter and commonly use it after an adsorption dryer.
• S-Filter Range :
  Particulate filters for dust protection. Count Efficiency: 99.81% at Most Penetrating Particle Size (MPPS = 0.1 micron). Always precede an S filter with a dryer.
• V-Filter Range :
  Activated carbon filter for removal of oil vapor and hydrocarbon odors. Maximum remaining oil content: 0.003 mg/m³ (0.003 ppm). Lifetime: 1000 hours.
• C-Filter Range :
  High-efficiency coalescing filters, removing solid particles, liquid water, and oil aerosol. Total Mass Efficiency: 99.9%. For optimal filtration, use a C filter preceded by a G filter.
• P-Filter Range :
  Coalescing and particulate general-purpose pre-filter. Removes solid particles, dust, liquid, and oil aerosol. Total Mass Efficiency: 90%.

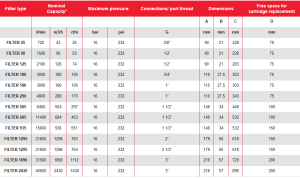

Technical Spesifications :

Filter Series 25 – 1430 cfm

By selecting the appropriate combination of filters, users can ensure the purity of their compressed air, optimize system performance, and protect downstream equipment and processes. Properly filtered air helps maintain product quality, reduces equipment downtime, and improves overall operational efficiency.
